Rajah Terminals

Ignition Cable

Cable Assemblies & Fiberglas Braid

T200-10

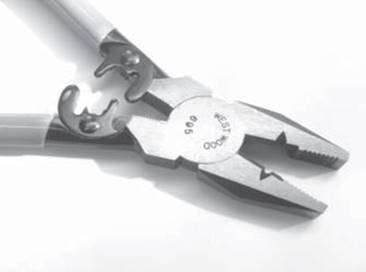

A service tech's dream come true! All the features of lineman's pliers, plus the ability to cut, strip, and crimp ignition cable and terminals. Hand fitted and finished to make this professional quality tool a joy to use and a pleasure to look at.
Master Lineman's Pliers & Terminal Crimper, drop forged steel, 8-1/2" long

rajah crimping tool.bmp

E9-250 BOOT

250 BOOT

Red silicone boot for spark plug

e9-250 boot.bmp

E9-251 BOOT

251 BOOT

Angle silicone boot for spark plug

e9-251 boot.bmp

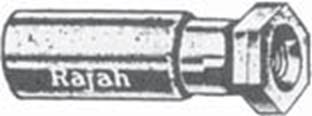

E9-457-6 6-32

457-6 6-32

6-32 plunger terminal

e9-457 6.bmp

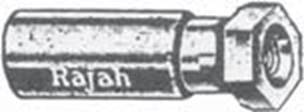

E9-458-9 10-32

458-9 10-32

10-32 plunger terminal


E9-467 GASKET

467 GASKET

9/16" X 3/4" formed copper gasket


E9-500 SHIELD

500 SHIELD

Black shield for Ray 500



E9-686 BAR

686 BAR

Walter Kidde brass buss bar

e9-686 bar.bmp

E9-2097

2097

Rajah terminal kit w/E200-10 crimp tool


E9-3500

3500

Rajah and ignition terminal kit w/E200-10 tool


E9-AB

AB

7/16" X 9/16" adapter bushing


E9-ACT

ACT

Angle cage terminal


E9-ACT-BS 6-32

ACT-BS 6-32

Angle cage on  6-32 hex stud


E9-ACT-BS 10-32

ACT-BS 10-32

Angle cage on 10-32 hex stud


E9-AEBF

AEBF

Angle extended Thermoplastic fitting


E9-AECF

AECF

Angle Ceramic Boot w/terminal

e9-aecf.bmpe9-aecf clip.bmp

E9-AL-10

AL-10

Long "A" spring for 10-32 thread


E9-AS-10

AS-10

Short "A" spring for 10-32 thread


E9-AS-SOS

AS-SOS

Angle spring snap, Thermoplastic


E9-ASC

ASC

Small "A" spring on cage


E9-ASN

ASN

Angle spring snap knurled fitting


E9-ASS

ASS

Angle spring snap cable fitting


E9-B-10 10-32

B-10 10-32

Button contact, brass, 5/16" long


E9-B-11 10-32

B-11 10-32

Button contact, brass, 11/16" long


E9-BB

BB

9/16" X 3/4" brass bushing


E9-BC-11

BC-11

Button contact on cage fitting


E9-BS 6-32

BS 6-32

Base stud with 6-32 thread

E9-BS 8-32

BS 8-32

Base stud with 8-32 thread

E9-BS 10-24

BS 10-24

Base stud with 10-24 thread

E9-BS 10-32

BS 10-32

Base stud with 10-32 thread

E9-BS-12

BS-12

Button contact on spring snap


E9-BS-SOS

BS-SOS

Base stud with black Thermoplastic


E9-BSN

BSN

Stud with knurled brass ferrule


E9-CBR

CBR

Cleaver Brooks split ring



E9-CBS

CBS

Cleaver Brooks spring, 20" long


E9-CC-1

CC-1

Cage on cage terminal


E9-CHT

CHT

Hook on ferrule terminal


E9-CK-1

CK-1

Carlin burner transformer contact kit

e9-ck 1.bmp

E9-CS

CS

Straight spring on cage


E9-CT

CT

Cage terminal, straight


E9-CT-BS 6-32

CT-BS 6-32

Cage terminal on  6-32 hex base


E9-CT-BS 8-32

CT-BS 8-32

Cage terminal on  8-32 hex base

E9-CT-BS 10-32

CT-BS 10-32

Cage terminal on 10-32 hex base

E9-CT-SS

CT-SS

Cage on spring snap terminal


E9-CT-TS 8-32

CT-TS 8-32

Cage on  8-32 threaded screw


E9-CT-TS 10-32

CT-TS 10-32

Cage on 10-32 threaded screw


E9-DB

DB

Dravo bushing


E9-DN

DN

Distributor nipple


E9-DS-1

DS-1

Spring snap on spring snap


E9-DT

DT

Brass distributor terminal


E9-EBF

EBF

Extended Thermoplastic terminal


E9-EBS  6-32

EBS  6-32

Extended base stud, 1" long


E9-EBS 10-32

EBS 10-32

Extended base stud, 1" long

E9-ECF

ECF

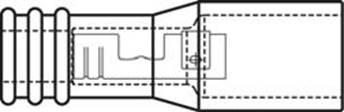

Sraight Ceramic Boot w/terminal


E9-FF-1

FF-1

Ferrule on ferrule terminal


E9-HS 6-32

HS 6-32

Hollow stud tapped


E9-HS 10-32

HS 10-32

Hollow stud tapped

E9-HT 6-32

HT 6-32

Hook terminal on 6-32 tapped hex

e9-ht 6 8 32.bmp

E9-HT 8-32

HT 8-32

Hook terminal on 8-32 tapped hex

E9-HT 10-32

HT 10-32

Hook terminal on 10-32 tapped hex

E9-I-18 GASKET

I-18 GASKET

9/16" X 3/4" flat copper gasket



E9-ITN 8-32

ITN 8-32

Large thumb nut


E9-ITN 10-32

ITN 10-32

Large thumb nut

E9-ITN-S 6-32

ITN-S 6-32

Small thumb nut


E9-ITN-S 8-32

ITN-S 8-32

Small thumb nut

E9-KBN 6-32

KBN 6-32

Knurled brass battery nut


E9-KBN 10-24

KBN 10-24

Knurled brass battery nut

E9-LV BOOT

LV BOOT

Vinyl boot for low voltage clip

e9-lv boot.bmp

E9-LV CLIP

LV CLIP

Alligator "Slim Jaw" clip

e9-lv clip.bmp

E9-PB

PB

7/16" X 1/2" protective bushing


E9-R-1

R-1

Ram’s horn clip



E9-R-2

R-2

Ring terminal for ignition cable



E9-R-SOS

R-SOS

Ring terminal w/Thermoplastic base


E9-RAC

RAC

Right angle cage terminal


E9-RASS

RASS

Right angle spring snap terminal


E9-RC-5

RC-5

Ram’s horn on cage terminal


E9-RE-7

RE-7

Ram’s horn on extended cage


E9-RP-6

RP-6

Ram’s horn on spring snap


E9-RS-3 10-32

RS-3 10-32

Ram’s horn on threaded screw


E9-RSN

RSN

Ring terminal with knurled brass ferrule


E9-RX-4 6-32

RX-4 6-32

Ram’s horn on hex base


E9-RX-4 8-32

RX-4 8-32

Ram’s horn on hex base

E9-RX-4 10-32

RX-4 10-32

Ram’s horn on hex base

E9-RX-5 10-32

RX-5 10-32

Ram’s horn with 1" base


E9-S-10

S-10

Beckett spring, 10-32


E9-S-15 10-32

S-15 10-32

Beckett spring


E9-SA-1 6-32

SA-1 6-32

Union Electric stud 6-32


E9-SCS-1 10-32

SCS-1 10-32

Straight 10-32 spring 1-1/4" long


E9-SCS-2 6-32

SCS-2 6-32

Straight 6-32 spring 1-1/8" long


E9-SF

SF

Stud ferrule cable terminal


E9-SR

SR

Split ring terminal


E9-SS

SS

Spring snap cable terminal


E9-SS-BS 6-32

SS-BS 6-32

Spring snap on 6-32 hex base


E9-SS-BS 8-32

SS-BS 8-32

Spring snap on 8-32 hex base

E9-SS-BS 10-32

SS-BS 10-32

Spring snap on 10-32 hex base

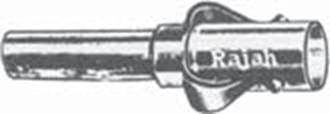

E9-SS-LBS

SS-LBS

Spring snap on 6-32 tapped stud

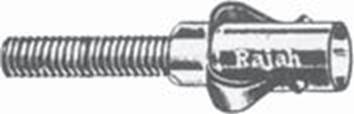

E9-SS-LTS

SS-LTS

Spring snap on long 6-32 screw


E9-SS-SOS

SS-SOS

Spring snap w/Thermoplastic base


E9-SS-TS 10-32

SS-TS 10-32

Spring snap on 10-32 screw


E9-SSN

SSN

Spring snap with brass ferrule


E9-SX-1 6-32

SX-1 6-32

Short hex base stud 1/2" long

e9-sx1 6 10.bmp

E9-SX-1 10-32

SX-1 10-32

Short hex base stud 1/2" long

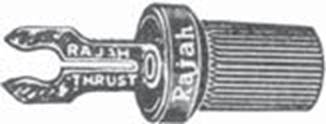

E9-T-SOS

T-SOS

Thrust terminal w/Thermoplastic


E9-TC-10

TC-10

Thumb nut on cage terminal


E9-TS-10

TS-10

Thumb nut on spring snap terminal


E9-TSN

TSN

Thrust terminal & knurled ferrule


E9-TT

TT

Thrust cable terminal

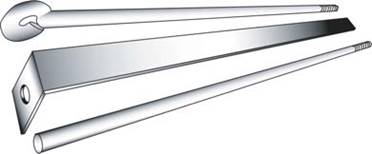

E9-TYPE ET

Type ET

1/8" dia. round buss bar w/eye, 6-32 thread, 12"

e9-type-et f st.bmp

E9-TYPE F

Type F

3/8" wide flat buss bar, 12" length

E9-TYPE ST

Type ST

1/8" dia. round buss bar, 6-32 thread, 12" length

E9-XC

XC

SX-1 stud on cage terminal


E9-YL-10

YL-10

Long "Y" spring 10-32


E9-YS-10

YS-10

Short "Y" spring 10-32


E9-YSC

YSC

YS-10 spring on CT-TS cage

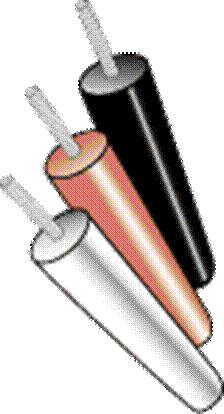

Ignition Cable


25 Foot Roll

100 Foot Roll

500 Foot Roll

1,000 Foot Roll


GTO-15

Yes

E60-25

E60-100

E60-500

E60-1000

HV-15



E61-25

E61-100

E61-500

E61-1000

White Silicone



E62-25

E62-100

--

--

Red Silicone

Yes

E63-25

E63-100

E63-500

E63-1000


GTO-15

(black)

Large .275" outside diameter fits Rajah terminals perfectly. Withstands more than 15,000 VAC

with low current leakage. Resists arc-over, tracking, and burning. Tested to withstand conditions

of heat, oil, and moisture. No. 14 gauge, 19 x 26 stranded tinned copper wire. All vinyl insulation

affords low temperature flexibility. Flame retardant, will not support combustion. Tough and

abrasion resistant, yet easy stripping. Temperature range: UL Listed to -1050C (2210 F)

White

Silicone

Large .275" outside diameter fits Rajah terminals perfectly. Withstands more than 10,000 VAC

and 25,000 VDC with low current leakage. No. 16 gauge, 19 x 26 stranded tinned copper wire.

Natural Silicone insulation, high dielectric strength.

Temperature range: -650 F to 4000 F (-540 C to 2040 C)

Red

Silicone

Large .275" outside diameter fits Rajah terminals perfectly. Withstands more than 10,000 VAC

and 25,000 VDC with low current leakage. No. 16 gauge, 19 x 26 stranded nickel plated copper

wire. Natural Silicone insulation, high dielectric strength.

Temperature range: -650 F to 4820 F (-540 C to 2500 C)



Cable Assemblies & Fiberglas Braid

E-64

3250

Red Silicone wire high temperature cable assembly with protective metal braid. Temperature  range -650 F to 4500 F. Overall length is 32-1/2"

E64-5

RS-3350

Red Silicone wire high temperature cable assembly with red Silicone boots. Temperature  range -650 F to 4500 F. Withstands 10,000 VAC / 25,000 VDC. Overall length is 33-1/2".

E64-20

3253

Fiberglas braided sleeving. Fits over ignition cable for high temperature protection. Sold by  the foot. (Ordering example: For 5' of sleeving order 5 of E64-20. Shipped as one piece)
